Striplight 1200 Reflector
Technical data

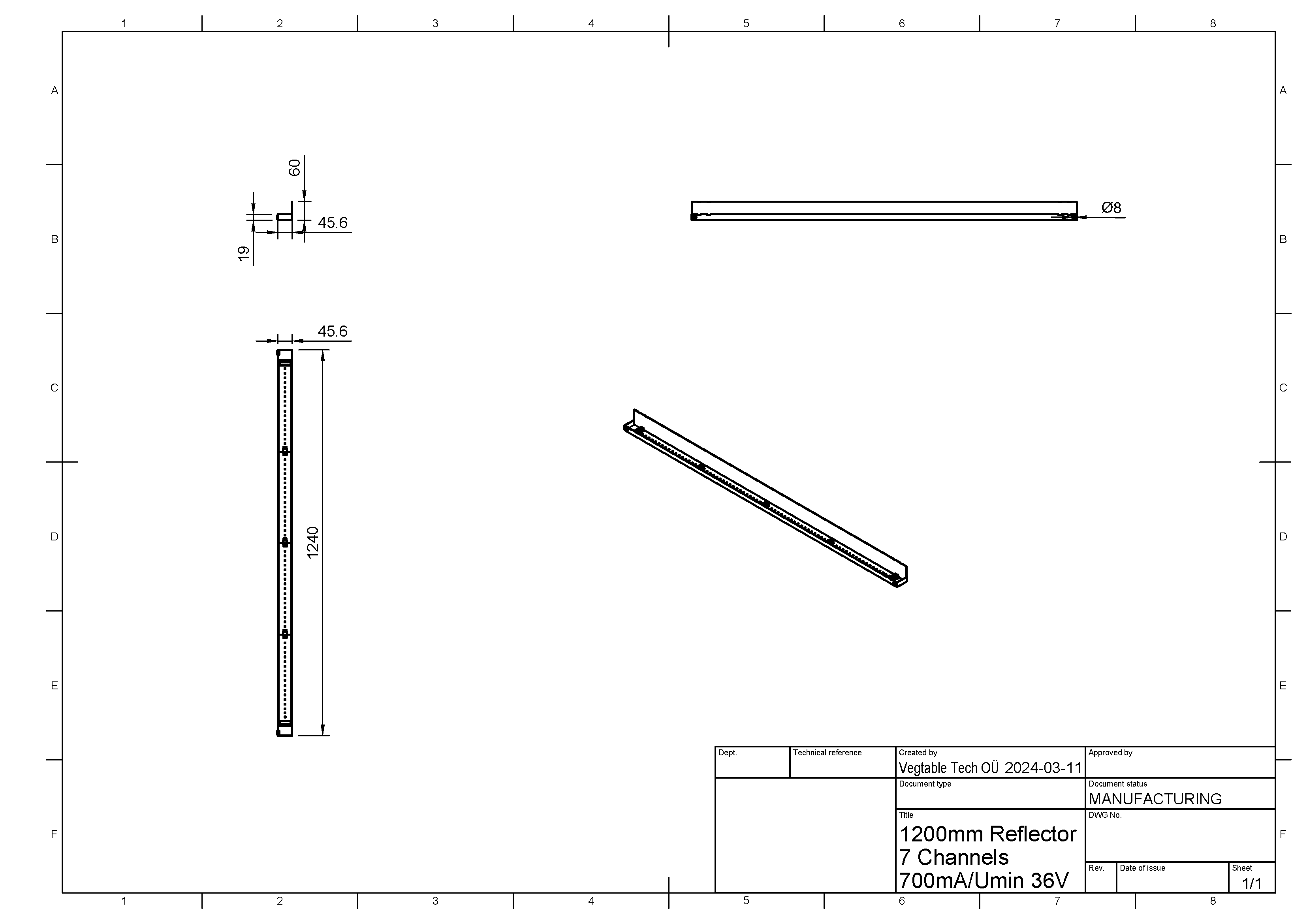

Dimensions L: 1200 x W: 45.6 x H: 60
Weight
Channels 7
Channel configuration
2x Deep Blue
2x Hyper Red
1x Far Red
1x Soft White
1x True Colour White
Power configuration Constant Current
Total Power 125W
Max current per channel 700mA
Min voltage per channel 27V
Summary
Our reflector striplight series is ideal for using in vertical farms that are focusing on growing high value plants usually in single row configuration. The added reflector ensures that maximum number of photons is directed towards plants, thus significantly increasing the efficiency of the lights.
It has 7 channels that consist of 2 deep blue, 2 hyper red, 1 far red and 2 white LEDs. Providing maximum spectral output in regions that are required for plant growth, but also not neglecting the green/yellow areas.
One white channel has been specifically chosen to provide 95% CRI, thus allowing the farmers to understand the real colours of the plants and supports automated image processing.
It covers area with with of 60 cm when installed to the centerline and approximately 20cm to both ends, with PPF ~150 on the average when installed at 1m height. This configuration has shown clear advantages over classical white spectrum dominant grow-lights and also superior to the square configuration lights.
